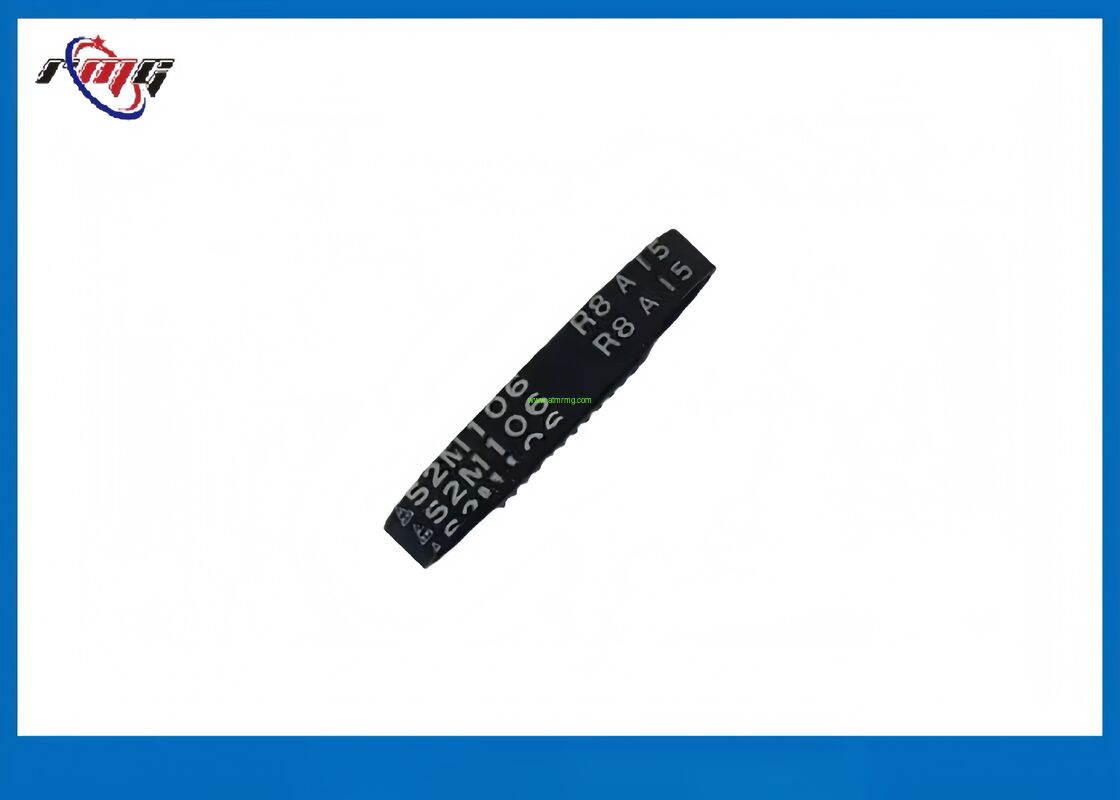

Fujitsu F53/F56 Cassette Timing Belt (S2M-106-6)
The CA82203-3053 is a high-precision, industrial-grade timing belt specifically engineered for the currency cassette units of Fujitsu F53 and F56 bill dispensing modules. It is a critical transmission component that ensures the synchronized movement of the internal mechanical parts of the cash box.
Key Features:
- Synchronous Performance: Designed with the S2M (Super Torque) circular tooth profile (2mm pitch), it prevents slippage and ensures accurate timing between the drive motor and the bill-lifting mechanism.
- Premium Material Construction: Manufactured from high-quality Neoprene (chloroprene rubber) reinforced with Fiberglass tensile cords. This combination provides excellent resistance to stretching, heat, and oil, ensuring long-term structural integrity.
- High Durability: Optimized for high-frequency stop-and-go operations characteristic of ATM bill dispensing cycles. It minimizes vibration and operational noise.
- Perfect Compatibility: As a genuine-spec replacement part, it fits perfectly into the compact housing of Fujitsu F53/F56 cassettes, facilitating smooth banknote feeding into the main transport path.
Common Applications:
- Used primarily within the Cash Cassette (Bill Box) to drive the pressure plate or the auxiliary picking gears.
- Essential for maintaining the correct pressure required to feed bills individually without causing jams or multi-bill pulls.
Technical Specifications
| Feature |
Specification |
| Material |
Neoprene Rubber with Fiberglass Reinforcement |
| Tooth Profile |
S2M (Circular Arc Tooth) |
| Pitch |
2.0 mm |
| Length (Circumference) |
106 mm |
| Width |
6.0 mm |
| Number of Teeth |
53 Teeth |
